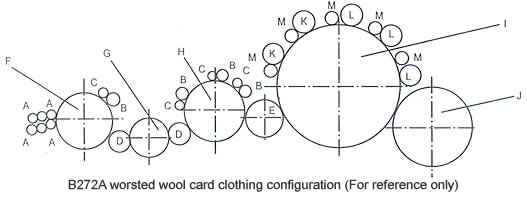

| B272A worsted wool card clothing configuration |
★ Combed woolen metallic card clothing is suitable for the blending and combing of woll with length under 200mm; or various chemical fibers with length under 120mm.
|
NO. |
Name |
Standard Model |
Wt.(KG) |
Modle NO. |
|
A |
wool feed roll |
BT5020*10215 |
2.5*4 |
BT-13 |
|
B |
1, 2 chest working roll |
BW4225*04212 |
11*4 |
BT-5(BT-8, BT-12C) |
|
C |
1, 2 chestwiper roll |
BS4225*04212 |
8*4 |
BT-5(BT-8, BT-12E) |
|
D |
1,2 transfer roll |
BR4225*04212 |
11*2 |
BT-5 |
|
E |
combing transfer roll |
BR4525*02510 |
33(56) |
BW-201 |
|
F |
NO. 1 chest cylinder |
BT5520*05415 |
34 |
BT-7 |
|
G |
weeding roll |
BT5035*03718 |
35 |
BT-4(chemical fiber) |
|
|
|
8W3555*02885 |
37 |
BH-3(Wool) |
|
H |
NO. 2 chest cylinder |
BT5030*03718 |
90(57) |
BT-4 |
|
I |
cylinder |
B03812*01810 |
105 |
BC-202 |
|
J |
doffer |
BD4230*01890 |
70 |
BD-202 |
|
K |
cylinder 1, 2 working rolls |
BW4525*02110 |
20*2 |
BW-202 |
|
L |
cylinder 3, 4, 5 working rolls |
BW4525*01810 |
20*3 |
BW-204 |
|
M |
cylinder 1-5 wiper rolls |
BS3630*03212 |
11*5 |
BT-203 |
|
|
