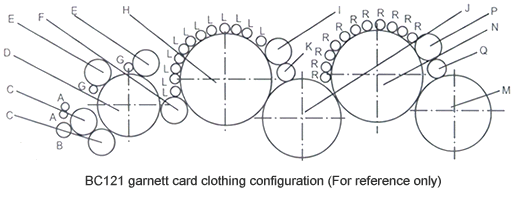

| BC121 garnett card clothing configuration |
★ suitable for the re-use of cotton waste, leftover material etc.
|
NO. |
Name |
Standard Model |
Modle NO. |
Wt.(KG) |
|
A |
feed roll |
NT8820*08520 |
BT-15 |
4.1 |
|
B |
feed roll |
NT6020*07315 |
BT-12EK |
7.0 |
|
C |
wool opener roll |
NT6020*07315 |
BT-12EK |
12.4 |
|
D |
chest cylinder |
NT6020*07315 |
BT-12EK |
25.4 |
|
|
|
NT6030*06415 |
BT-12CK |
|
|
E |
working roll |
NW5420*05612 |
BT-18 |
10.5 |
|
|
|
NW5915*056122 |
|
|
|
F |
transport roller |
NT6030*06415 |
BT-120K |
11.5 |
|
|
|
NT6020*07315 |
BT-12EK |
|
|
G |
wiper roll |
NW5420*05612 |
BT-18 |
5.2 |
|
H |
medium cylinder |
AC3520*01880 |
AC-7K |
55 |
|
|
|
A03520*01880 |
AC-302K |
|
|
|
|
A03215*01880 |
AC-2K |
|
|
|
|
AC3215*01870 |
AC-3K |
|
|
|
|
B03812*01810 |
BC-202K |
|
|
I |
wind wheel |
NR4230*03210 |
BT-11B |
14.1 |
|
J |
medium doffer |
ND4525*02110 |
BW-202K |
50 |
|
|
|
ND4525*01810 |
BW-204K |
|
|
|
|
B04530*02110 |
BD-201K |
|
|
K |
lower windshield |
NR4525*02110 |
BW-202K |
7.5 |
|
L |
medium cylinderworking roll |
NW4525*02110 |
BW-202K |
|
|
|
|
NW4525*01810 |
|
50 |
|
M |
end doffer |
AD4032*02075 |
AD-4BK |
|
|
|
|
AD4030*01890 |
AD-17K |
55 |
|
N |
end cylinder |
AC2820*01560 |
AC-42K |
|
|
|
|
AC2525*01560 |
AC-69K |
|
|
|
|
A02825*01560 |
AC-66K |
|
|
P |
wind wheel |
NR5430*03210 |
BT-10B |
|
|
|
|
NR4230*03210 |
BT-11B |
|
|
Q |
lower windshield |
NW4525*02110 |
BW-202K |
|
|
R |
working roll |
AD4030*01890 |
AD-17K |
7.5 |
|
|
|
AD4032*02075 |
AD-4BK |
|
|
|
